KitchenAid Refrigerator Warm but Freezer Cold? The Evap Fan Motor Is a Common Culprit
What I Found On This KitchenAid Service Call

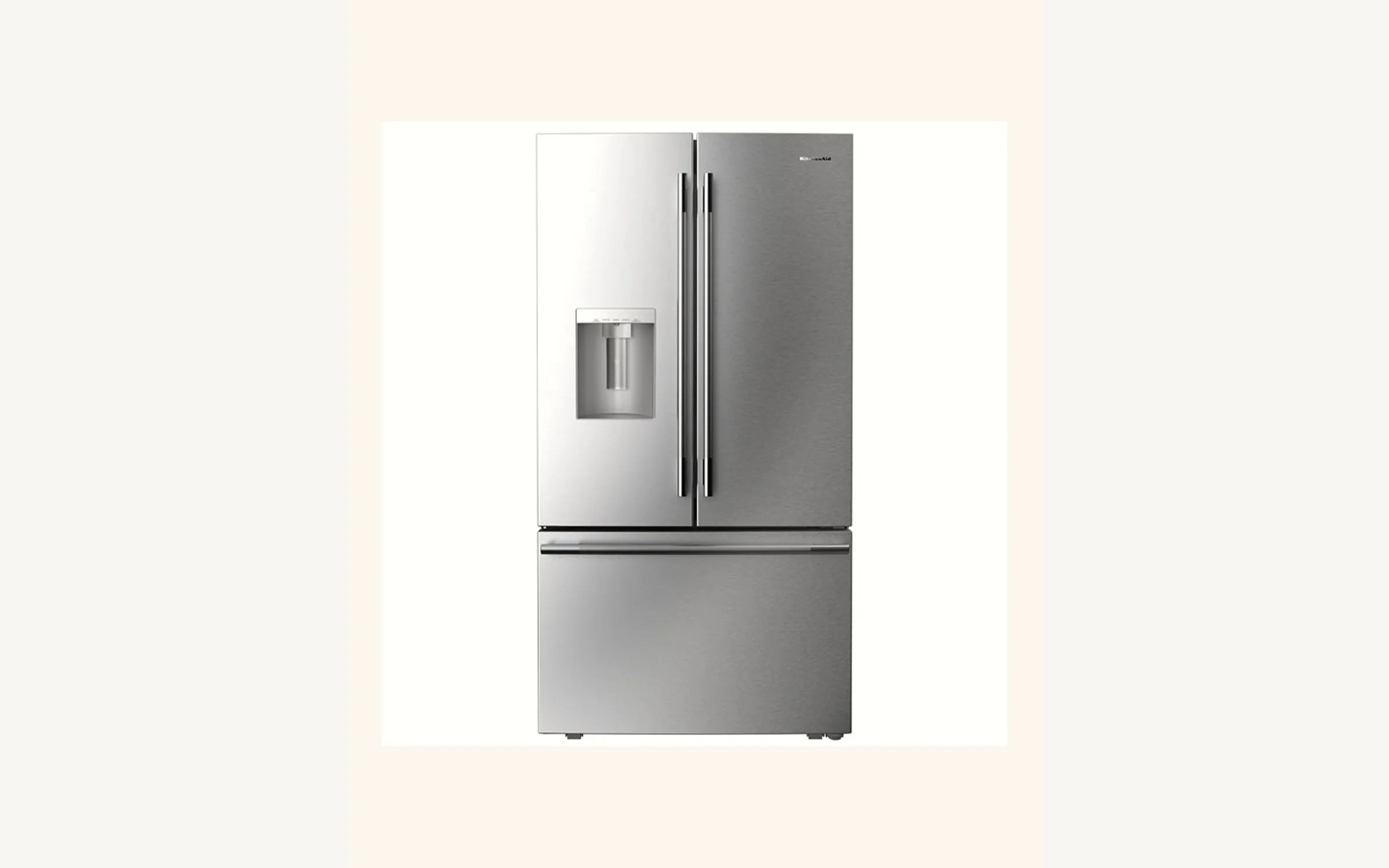

Got the call from a woman in Mission Viejo around lunchtime. Her KitchenAid French-door — one of the built-in-look counter-depth models, probably six or seven years old — had the fridge side reading 52°F on her in-door display. Freezer was holding fine at 0°F. Cubes coming out of the ice maker were normal. But the milk in the door was warm and the salad greens in the crisper had wilted overnight.
When you see this split — warm fridge, cold freezer, on a KitchenAid French-door — there’s a tight short list. The most common offender is the evaporator fan motor. The single evaporator on most KitchenAid French-doors sits behind the back panel of the freezer compartment, and the cold air for the fridge section gets pushed up a chase to a damper at the top of the fresh-food side. When that fan dies or stalls, the freezer stays cold because the compressor and the coil are still running, but no air ever gets pushed up to the fridge.
How I Narrowed It Down
I opened the freezer with the door switches held in so the fan would stay on. Put my ear close to the back panel. Nothing. Total silence. On a healthy KitchenAid you should hear a clear hum from the fan motor and feel cold air moving when you put your hand near the back of the freezer.
I pulled the freezer drawer and the back panel. The evap coil was clean — no frost buildup, no ice bridging — which actually told me a lot. If the defrost system had failed, I’d be looking at an iced-over coil. Since the coil was clean and the freezer was still cold, the cold side of the system was working fine. The problem was airflow, not refrigeration.
I tried to spin the evap fan blade by hand. Stiff. Bearings were shot. On the KitchenAid platform this is a brushless DC motor, and when the bearings start to go you sometimes get a couple of weeks of intermittent operation — fan kicks on and off, fridge temperature swings between 38°F and 50°F depending on whether the motor is feeling cooperative — before it gives up entirely. This one had crossed over to fully seized.
I also checked a couple of related parts before committing to the swap. The damper at the top of the fresh-food compartment — that’s a small motorized flap that opens to let cold air into the fridge — was free and moving. The temperature sensors in both compartments were reading correctly. The control board was sending the right signals. So the fan motor was the answer.
A quick word on the KitchenAid build. These units share a lot of internals with the Whirlpool platform — KitchenAid is the Whirlpool group’s premium tier, but the mechanicals overlap heavily. That means the fan motor is a part I keep on the truck because it shows up across both brands regularly.
The Fix and What It Took
The KitchenAid evaporator fan swap is about a 45-minute job. The motor lives behind the panel, attached with a couple of screws and a clip, with a harness that pulls off cleanly. The trickier part is reassembling the foam insulation around the panel so you don’t end up with an air leak that lets warm air bypass the fan when you put it all back together. I pulled the old motor, swapped the new one in, plugged the harness back, and tested it before reinstalling the panel — fan came up to full speed within a second.
By the time I had the freezer back together and was writing the invoice in the kitchen, the fridge temperature had dropped from 52°F into the high 40s. I texted the customer a couple hours later to confirm the temp had come down all the way — she said it was reading 38°F by then.
Customer paid the flat repair quote, the diagnostic fee was waived because she went ahead with the work, and the job is covered by our 3-month warranty.
A heads-up if you’re trying to triage this yourself before calling. If your KitchenAid fridge is warm and the freezer is cold, the first thing to test is whether you can hear the evap fan. Open the freezer door, hold the switches in with your finger or a piece of tape, and listen for about thirty seconds. If you hear nothing, or if you hear a loud rattle that fades to nothing, you’ve found your problem.
