Bosch French-Door Running Warm? A Failing Evaporator Fan Is a Common Culprit
What I Found On This Bosch Service Call

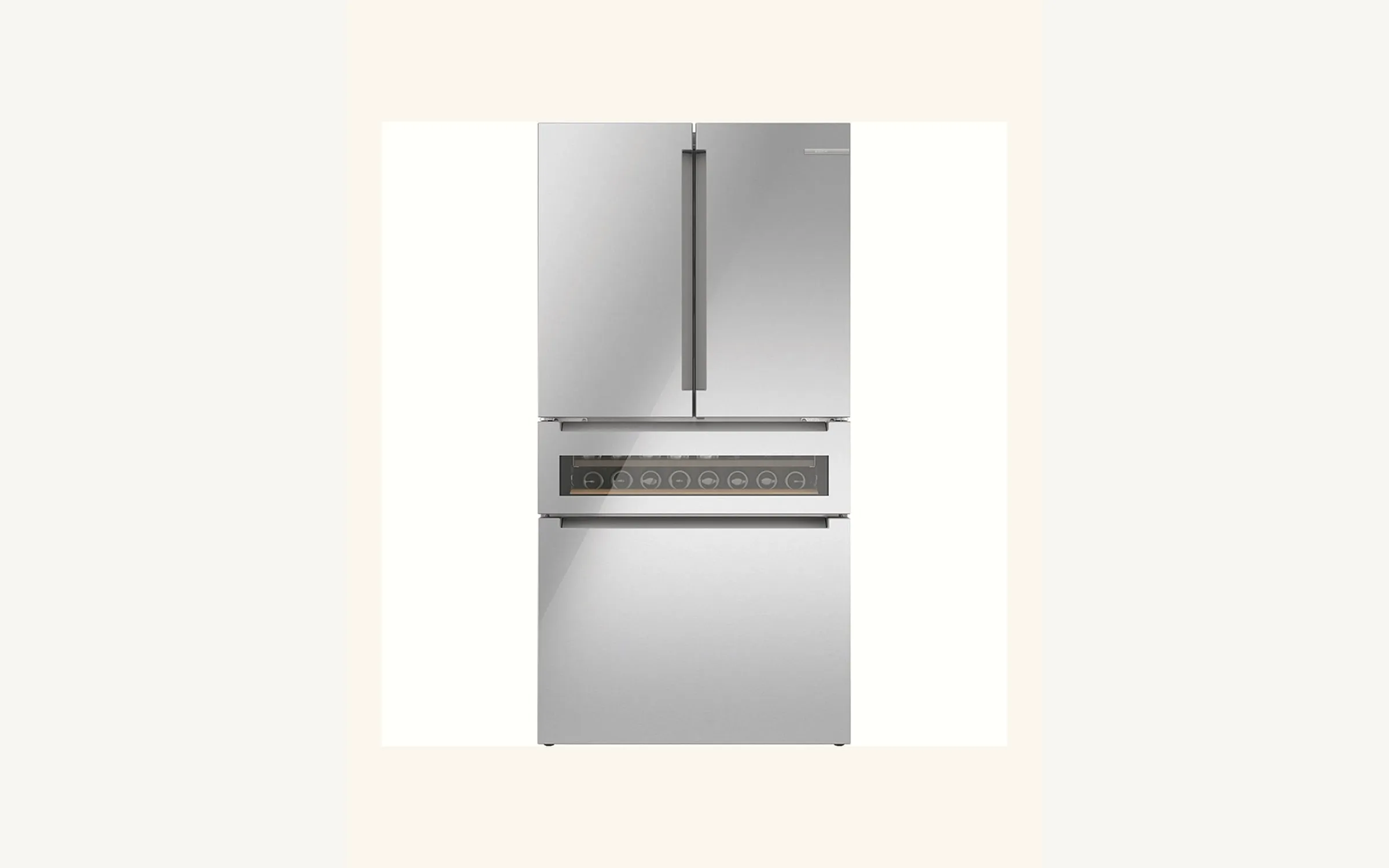

I pulled into a Newport Beach condo development about 10 in the morning. The homeowner had a Bosch 800 series French-door — the counter-depth model with the ice maker in the freezer drawer — and the symptom she described was textbook. Fridge section was running in the mid-50s. Freezer was rock solid, ice cubes were fine, but anything in the fresh-food side was sweating in the warm air. She had moved the milk into the freezer the night before to keep it from going off.
When the freezer is fine and the fridge is warm on a Bosch French-door, there’s a short list of suspects: the damper that controls how much cold air gets pushed up to the fridge, the evaporator fan motor that pushes that air, or a control board issue that’s stopping the fan from being told to run. The damper is mechanical and you can sometimes hear it open and close. The fan is usually the louder tell — when it’s about to die, it gets loud and groany, and when it’s gone, it’s silent.
How I Narrowed It Down
I put my ear up against the back of the freezer for a couple of minutes with the door switches taped down so the fan stayed on. Silence. No fan hum, no air movement. That’s the giveaway on these Bosch units — when the evaporator fan motor seizes, the freezer side stays cold for a long time because the existing ice and the compressor running keep the box cold by conduction, but no cold air ever makes it up into the fridge compartment. The fridge slowly warms toward room temperature.
I pulled the back panel of the freezer. The fan blade was stiff — would barely turn by hand. On a Bosch the evap fan motor is a brushless DC motor, and when the bearings start to go you sometimes also see odd error codes or the freezer temp creeping up because the motor is stalling on every start. This one was past stalling, it was fully seized.
A couple of things I always check on a Bosch service call before I commit to a fan motor swap. One, the door gaskets — Bosch gaskets are tighter than most domestic brands and when they tear at the hinge corner the box loses cold fast. These were intact. Two, the condenser coil and the condenser fan in the compressor compartment underneath. Both clean. Three, the user interface — Bosch lets you set custom temps and I always check the customer didn’t accidentally bump the fridge setpoint to 50°F or stick it in a vacation mode. It was on the normal 37°F setting.
So the fan motor was the answer. I had the part on the truck.
The Fix and What It Took
The Bosch evap fan motor swap takes about 45 minutes start to finish. The motor lives behind a foam-insulated panel in the freezer, and Bosch uses small clips and a couple of screws that like to round out if you’re aggressive with them. I pulled the old motor, swapped in the new one, plugged it into the harness, ran the unit, and watched the fridge temp drop from the high 50s down into the 40s within about half an hour. By the time I packed up, it was holding steady at 38°F.
The customer paid the flat repair quote, diagnostic fee was waived because she went ahead with the work, and the parts and labor are covered by our 3-month warranty.
A quick heads-up if you’re trying to figure this out yourself before calling. If your Bosch fridge is warm but the freezer is normal, open the freezer and listen carefully for the evap fan. If you hear nothing, or you hear a loud rattle followed by silence, it’s almost certainly the fan. Don’t keep using the unit like that — when the motor stalls, the compressor can keep running and end up frosting over the evaporator, which doubles the repair scope.
If you’re in Newport Beach or anywhere in Orange County and your Bosch refrigerator is running warm on the fridge side, give us a call. We’re an independent shop, our specialists work on European built-in and integrated brands regularly, and we can usually get out the same or next day. $65 diagnostic, waived with repair, 3-month warranty on the job.
